Specs
TITLE
MS Orlando
GWVR
24000
DRY WEIGHT
20860
HITCH WEIGHT
3600
CARGO CAPACITY
3076
WIDTH
8'-5"
HEIGHT
13'-3"
LENGTH
46'-0"
SQFT
492
SLEEP CAPACITY
3-4
AXLES
3 x 8000
FRESH TANK
100
GREY TANK
125
BLACK TANK
100
WATER HEATER
12
FURNACE
40,000 BTU
AIR CONDITIONER
15,000 BTU
AIR CONDITIONER2
15,000 BTU
AIR CONDITIONER3
15,000 BTU
LP TANK CAPACITY
2 x 40 LBS
REFRIGERATOR
18 Cu Ft/110/Res.
CONVERTOR
80 AMP
SHORE POWER
50 AMP
NUMBER OF SLIDES
6
MAIN SLIDE HEIGHT
7'-3-1/2"
BEDROOM HEIGHT
6'-7-1/8"
AWNING LENGTH
8'
COOK TOP
3 Burner
TRADITIONAL OVEN
Yes
CONVECTION OVEN
Yes
GARAGE LENGTH
GENERATOR PREP
Optional
BED SIZE
King
Features
- 15″ Triple Stacked Box Tube Frame
- 3″ Thick Floor
- 3 1/4″ Thick Walls/Slides
- 1/4″ Thick Gelcoat Azdel Fiberglass w/Wood Backer
- 1/4″ Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
- Seamless, 1-Piece Rubber Roof
- Custom Painted Exterior w/Clear Coat
- Frameless Tinted Safety Glass Windows
- Residential 5 Duct Heating System w/6″ Ducting
- 17 1/2″ H-Rated Tires
- 17 1/2″ H-Rated Tires
- Heavy Duty Grease Bolt Shackles w/Bronze Bushing
- Kodiak® Automotive Disc Brakes
- Heavy Duty Axles
- Commercial Grade E-Z Lube® Hubs
- 15″ Triple Stacked Box Tube Frame
- 101″ Wide Body
- Industrial Hydraulic System for Jacks & Lower Level Slides
- Electric Bedroom Slide
- Slide Outs w/Select Push Button Controls
- Pinless Hydraulic Front Landing Jacks at 5 Degree Outboard Angle
- 3″ Thick Floor
- 14″ O.C. Floor Aluminum Floor Joists
- Screwed & Glued Joist Construction
- 5/8″ Tongue & Groove Plywood Flooring
- Residential Perimeter Heating
- Residential Rated R29 Insulation
- 3 1/4″ Thick Walls/Slides
- 16″ O.C. Stud Spacing
- Screwed & Glued Aluminum Stud Construction
- 1/4″ Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
- 1/4″ Thick Gelcoat Azdel Fiberglass w/Wood Backer
- Residential Rated R16 Insulation
- 16″ O.C. Rafter Spacing
- Residential Rated R25 Insulation
- 1/2″ Plywood Roof Overlayment
- Seamless, 1-Piece Rubber Roof
- Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings
- Straight Roof Line w/8′ Tall Interior Slide Out Height
- High Density Insulation
- Custom Painted Exterior w/Clear Coat
- Gelcoat Fiberglass Molded Caps
- Frameless Tinted Safety Glass Windows
- Five Exterior Security Lights
- Commercial LED Exterior Clearance Lights
- Amber LED Front Cap Turn Signal
- LED Docking Lights
- 78″ Entry Door
- Metal Slam Door Compartment Latches
- Extra Thick Compartment Doors w/Gas Struts
- Motion Sensor LED Light Switches for Basement
- Washable Storage Compartment Liner
- Custom Enlarged Control Center w/LED Lighting
- Lend-a-Hand Exterior Grab Handle
- Power Awning w/LED Lights & Aluminum Weather Shield
- Water Pump Switch at Outside Hookup Center
- 50 Amp Service w/Detachable Cord
- 80 Amp 12 VDC Converter
- 100 Gal. Fresh Water Tank
- 75 Gal. Grey Water Tank w/Power Flush
- 50 Gal. Black Water Tank w/Power Flush
- SeeLevel Tank Monitoring System on All Tanks
- Residential Type 1/2″ Water Lines
- Exclusive Copper Water Manifold w/Individual Shut-Off Valves
- Whole House Water Filtration System
- Multi-Switch Water Bypass System
- Slide Out Propane Tray w/Dual 40 Lb. Tanks
- 12 VDC Battery on Pull Out Tray
- 40,000 BTU Furnace w/Custom Plenum
- Residential 5 Duct Heating System w/6″ Ducting
- Forced Heat Ducting to Tanks/Water System
- Fully Ducted A/C System w/Cold Air Return
- 15,000 BTU Low-Profile Main A/C
- Wired & Ducted Bedroom A/C w/Cold Air Return
- Third A/C Prep (All Tandem Axles)
- Double 15,000 BTU Low-Profile A/Cs (Triple 15,000 BTU Low Profile A/Cs on MSEX)
- Solar Prep
- HD Roof Satellite Prep for Dual DVR Receivers
- HD Ground Satellite & Cable Prep
- Power HD TV Antenna
- Hand Laid Vinyl Plank Tile
- Residential Rebond Carpet Pad
- Plush Residential High Durability Carpet

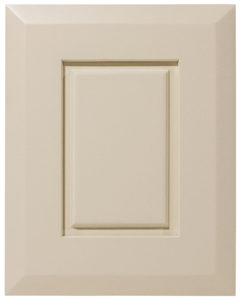

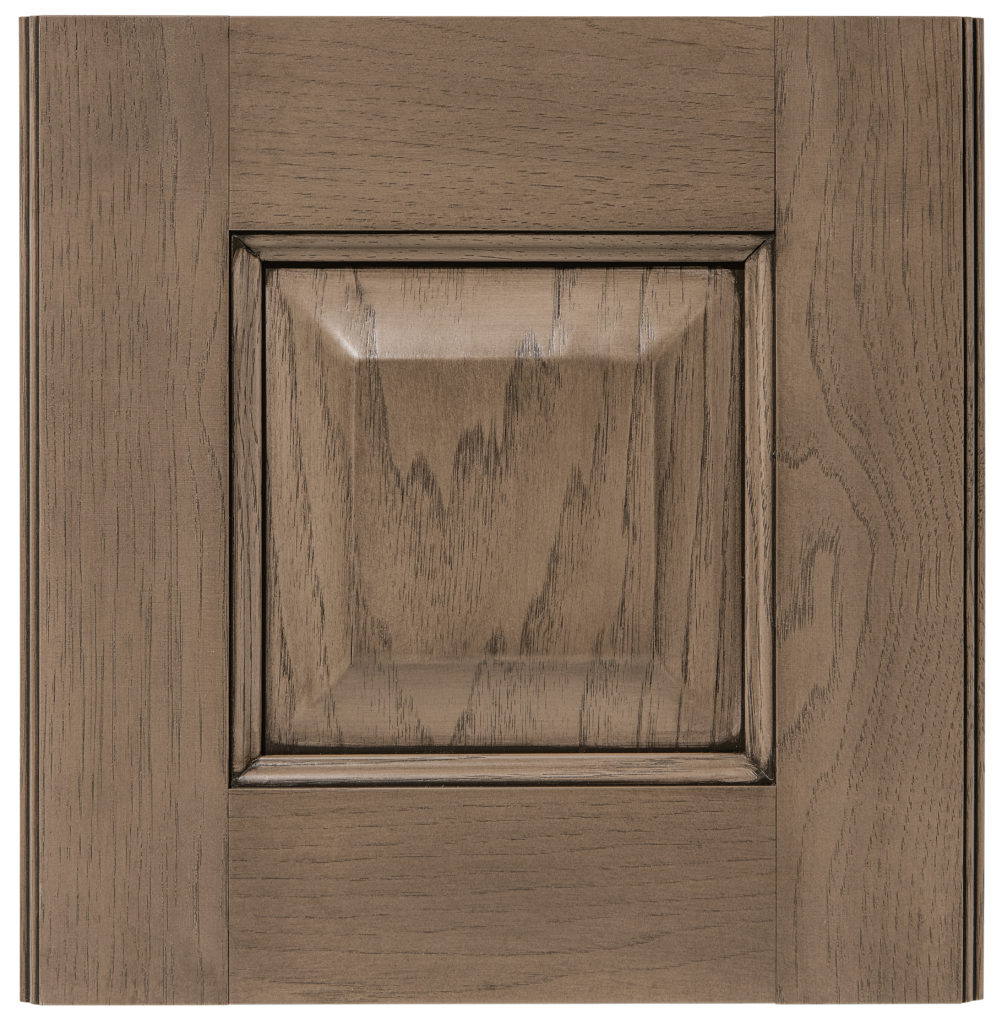

- Toffee Grove /Chai Hickory/Italian White Solid Hardwood Cabinetry

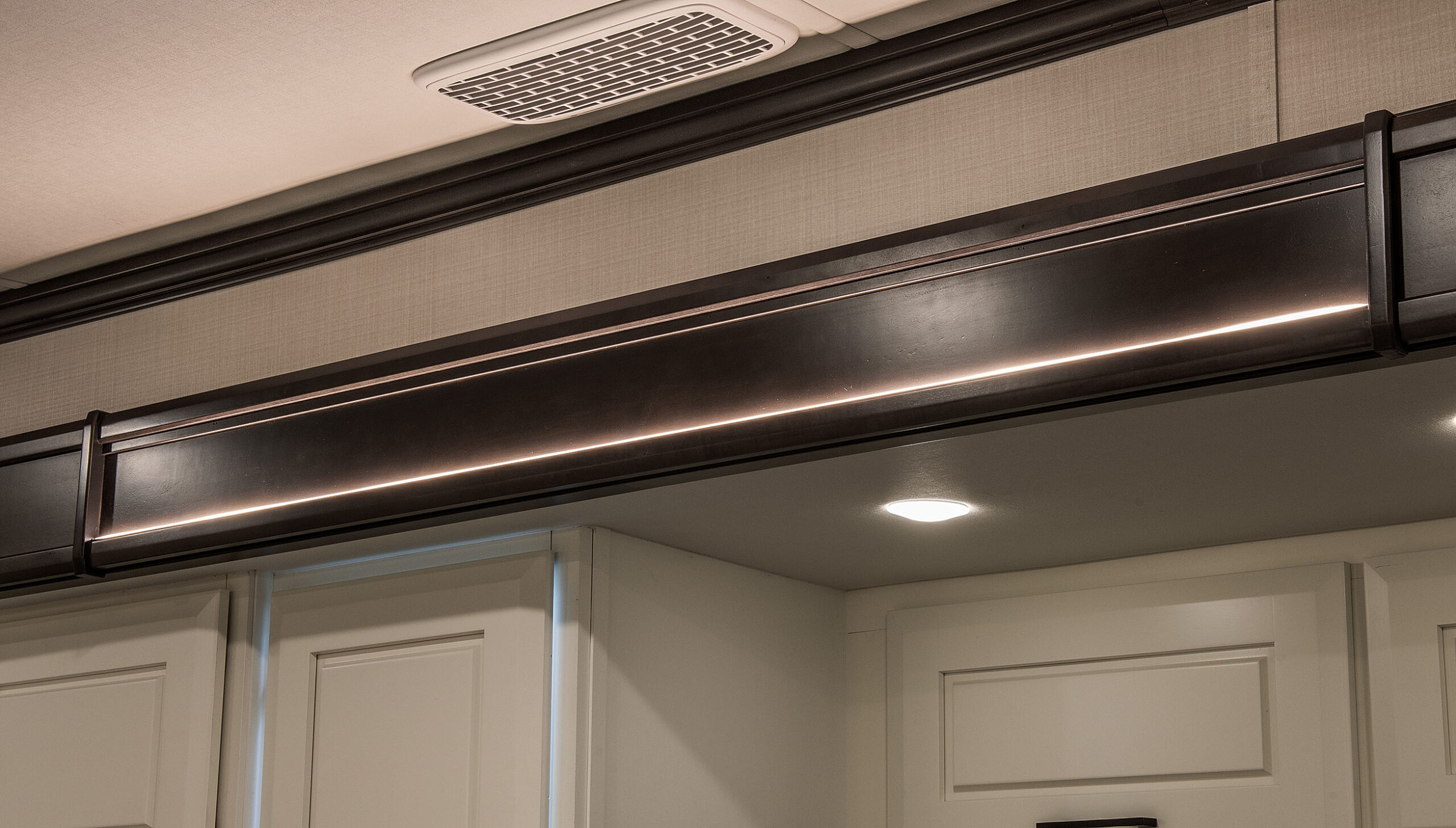

- Solid Hardwood Fascia Trim Around Slide Outs w/LED Lights
- Solid Hardwood Cabinet Stiles (Pocket Drilled/Screwed)
- Concealed Cabinet Door Hinges
- Raised Panel Cabinetry
- Soft-Close Full Extension Metal Drawer Guides
- LED Interior Ceiling Lighting on Dimmer Switches
- Decorative Wall Clock (Most Models)
- Utility Closet w/Coat Storage & Centralized Control Station (Most Models)
- Interior Ceiling Fan (Most Models)
- Decorative 12V Light Sconces
- Custom Hardwood Dinette Buffet w/Solid Surface Top
- Dinette Table w/Hidden Leaf Extension
- (2) Hardwood Dinette Chairs w/Fabric Accent
- Crown Molding Throughout
- HD Wiring Throughout
- Residential Sofa w/Hide-a-Bed (Most Models)
- Residential Theatre Seating w/Center Console (Side Entertainment Models)
- Residential Recliners (Rear Entertainment Models)
- 20 Cu. Ft. Residential Stainless Steel French Door Refrigerator
- Stainless Steel Convection/Microwave
- Stainless Steel Residential Style Gas Oven
- Stainless Steel Residential Dishwasher
- Pull-Out 13 Gal. Garbage Can (Most Models)
- Deep Double Bowl Stainless Steel Sink w/Sink Covers
- Residential Kitchen Faucet
- Custom Hand Laid Tile Backsplash
- High Polished Solid Surface Countertops
- Custom Appliance Garage w/Pull-Out Tray (Most Models)
- Custom Over the Island Accent Light
- Lighted Pantries & Kitchen/Bathroom Toe Kicks
- Hardwood Steps with Woven Inlay
- Hand Laid Vinyl Plank in Hallway/Bathroom
- No Carpet in Hallway
- Washer/Dryer Prep
- Heat & A/C Ducting in Bathroom
- Powered Fan in Bathroom (Exhaust Only)
- Sky-Light Over Shower w/LED Pot Light
- Porcelain Toilet w/Water Saver Spray

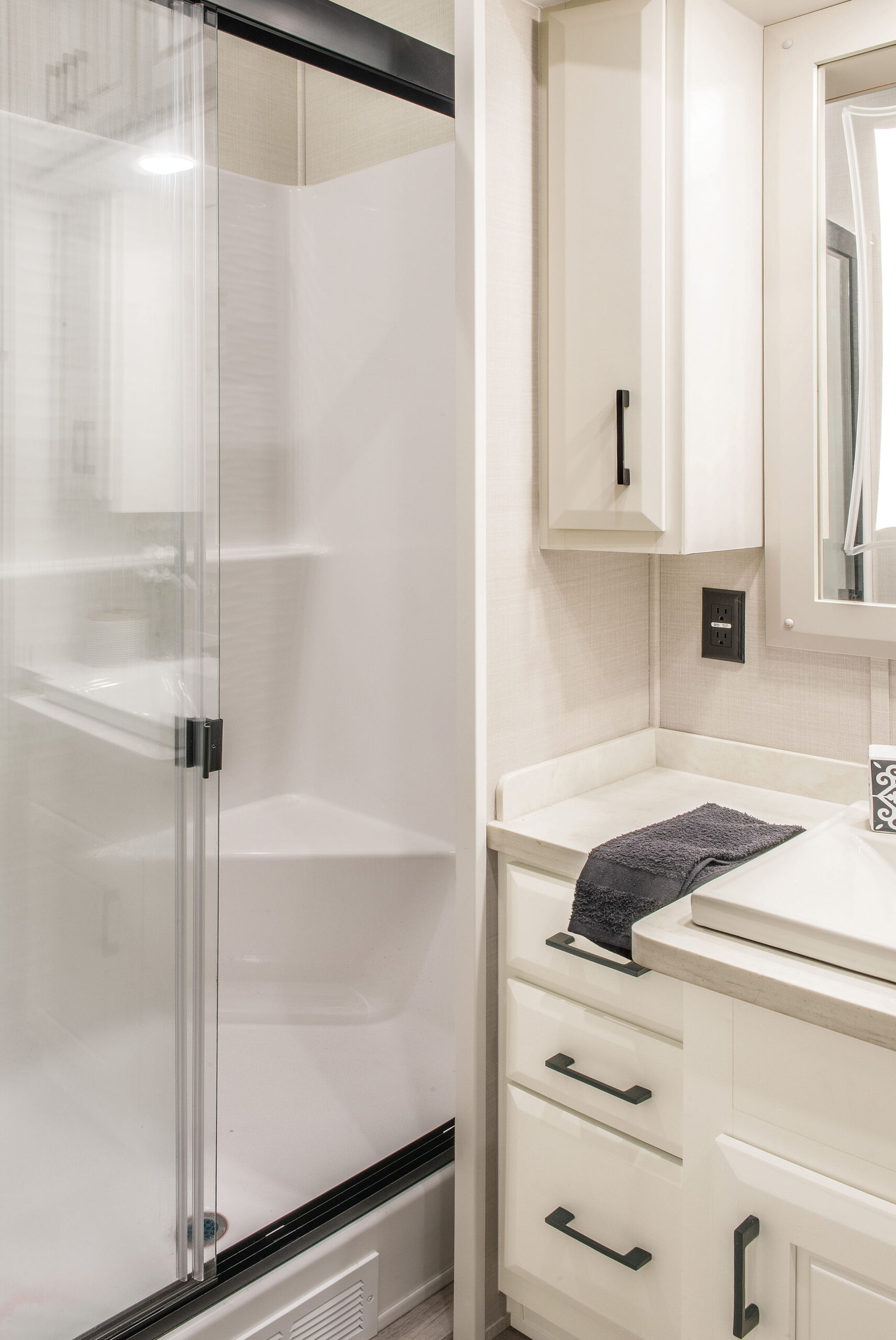

- Fiberglass Shower Pan w/Full Height Decorative Shower Walls
Options
Entertainment:
- 60″ LED Smart HDTV (Rear Entertainment Models Only)
- 32″ LED HDTV Outdoor Entertainment
- Winegard® Trav’ler HD Auto Satellite
- WiFi Ranger Wireless Router
Bedroom:
- Built in Front Wardrobe Safe with Keyless Entry
- Queen Bed Suite
- MorRyde Bed Lift
Systems/Vents/Fans:
- 3rd 15 BTU Ducted Lo/Pro AC – Bedroom
- Heat Pump
- Max Air Fan with Rain Sensor and Switch Control – Bedroom
- Washer / Dryer Splendide® Front Load 2 Piece
- Generator Prep
- Onan® 5,500 Marquis Gold Generator with Prep
- 2,800 Watt Inverter with Four 6V Batteries
- Surge Protector with Voltage Protection & Remote Display
- Heat Pads on All Tanks w/Elbow Heater on Drain Pipe
Construction/Running Gear:
- Power Cord Reel
- HBA Brake Cam (To be Ordered Special for Customers w/GM Trucks)
- MORryde® Step Above
Exterior/Awnings
- Slide Toppers
- Power Dinette Slide Patio Awning w/Weathershield
- Slide Out Storage Tray (36″ x 90″)
- Audible Wireless Backup Camera System
- One Piece Molded Fiberglass Roof (Standard with Elite Packages)
Elite Package:
- One Piece Fiberglass Roof (N/A on Full House)
- Custom Molded One Piece Fiberglass Fender Skirts
- Custom Full Body Paint Scheme w/Window Silks and Striping on Slide End Walls
- High Polished Quartz Countertops
- Power MCD Roller Shades
- Lighted Wood Valances
- ASA In-Command System
- Select Comfort Mattress
- Capetown Veil Exterior
- Arctic Mist Exterior
Symphony
Capetown Veil(Elite Suites Package Full Body Paint)
Arctic Mist (Elite Suites Package Full Body Paint)
Auburn Sands
Coastal Villa
Glacier Bay
Mystic Reserve
Regal Heights
